Christopher Ditch Piping - Phase 2

Salmonid Habitat Restoration and Acquisition

Instream Flow
Project ID14-Warm-04
Recovery DomainsWillamette R. - Lower Columbia
Start Date09/15/2015
End Date06/30/2016
Year2014
StatusCompleted
Last Edited10/21/2021

1 - 1

Description


The Hood River basin is located within one of only two identified “Substantial Potential Conflict Areas” hotspots in Oregon, as mapped by the USDI Bureau of Reclamation’s “Potential Water Crises by 2025” (www.doi.gov/water2025/). This status is given to western US basin regions where “existing supplies are not adequate to meet water demands for people, farms & environment”. High competition is due to the presence of important aquatic species (ESA listed winter steelhead, Coho, and spring Chinook), high out-of-stream water allocation (East Fork Irrigation District and Mt. Hood Irrigation District rights of up to 127 cfs), and diminishing summer flows caused by climate change.

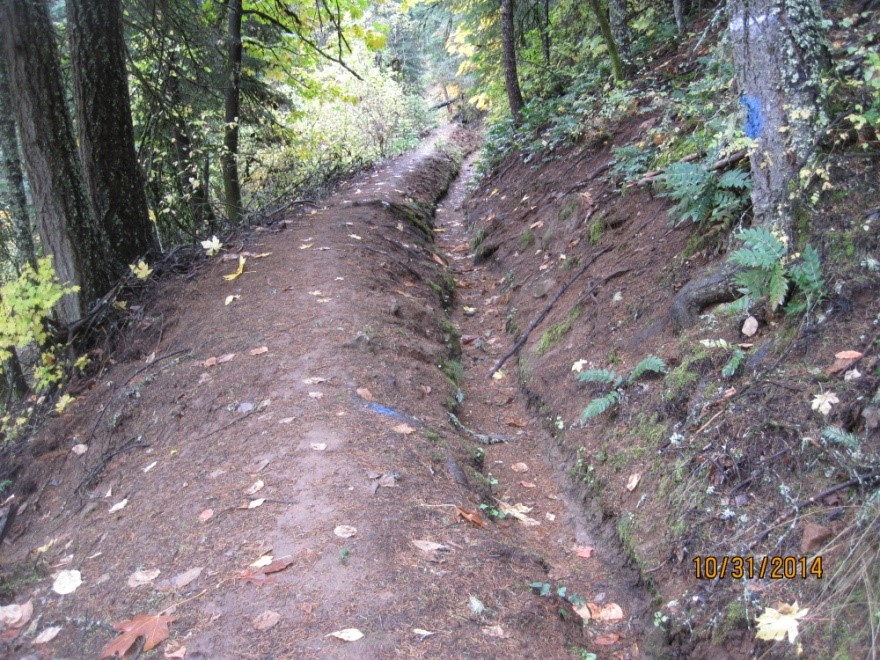

The Warm Springs Tribe used project funds to complete a water efficiency project in the Hood River basin. This was the second phase of a two phase project to reconstruct an irrigation water delivery system for patrons of the East Fork Irrigation District (EFID). The first phase included installation of 3,000 feet of 15” irrigation pipe in the open Christopher irrigation ditch and was completed in 2014. This project is identified as a high priority project in the Hood River Watershed Action Plan and draft Lower Columbia Salmon and Steelhead Recovery Plan. The project is located within the Lower Columbia ESU for steelhead (Oncorynchus mykiss), coho (Oncorynchus kisutch), and spring Chinook salmon (Oncorynchus tshawytscha). Additional species that will benefit from this project include pacific lamprey (Entosphenus tridentatus) and resident trout (O. mykiss).

The Christopher Ditch Piping – Phase II project was a successful project. It was completed on time and on budget. This project compliments other piping and water conservation efforts in the East Fork Hood River watershed – with the goal of increasing instream flow and habitat for salmonids.

Upon Completion of the Christopher Ditch Piping Project Phase II, approximately 6800 feet of pipeline was installed -providing irrigation water to 25 users. The project resulted in the conservation 0.5 cfs of water, which was converted into an instream water right for the East Fork Hood River. PCSRF dollars were used to purchase the pipe and fittings for the project and were used for the construction of the pipeline.

The work performed and paid for using FY 2014 PCSRF funds under this project at each worksite is as follows:

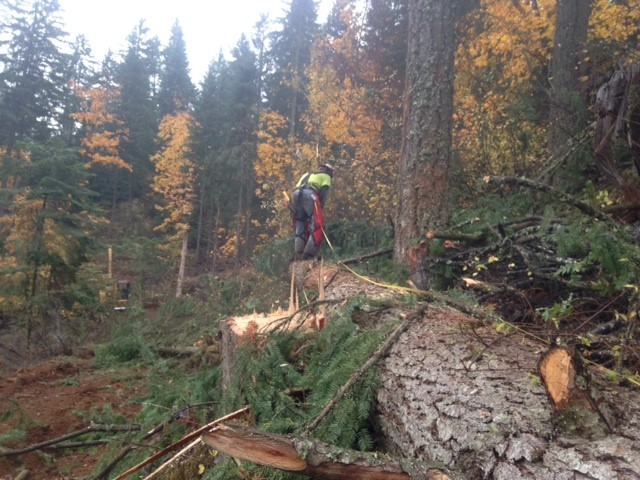

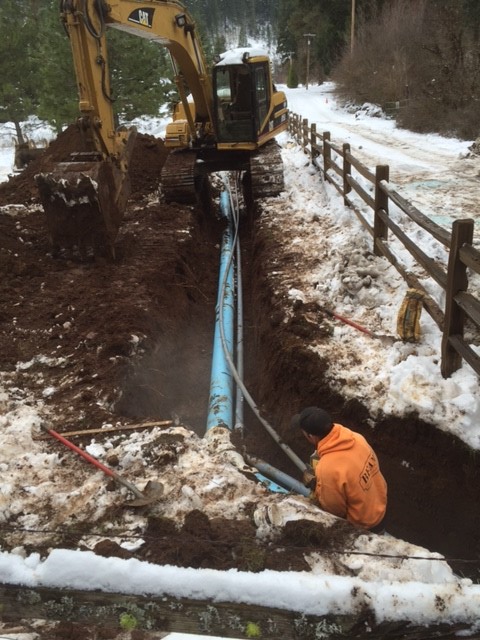

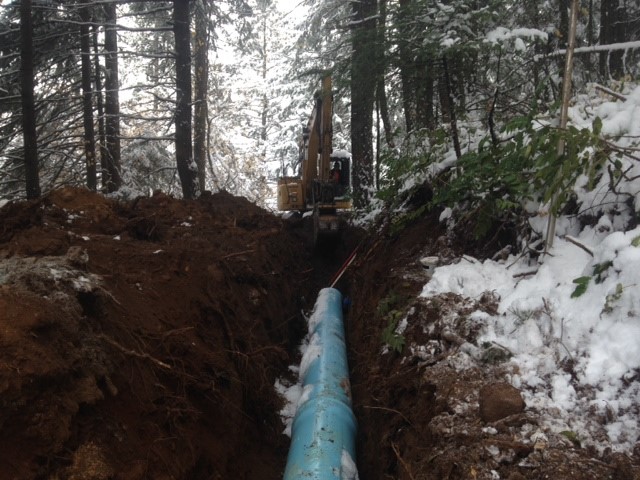

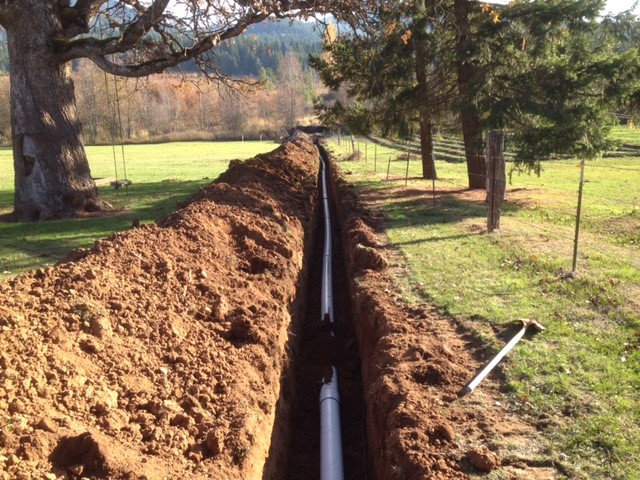

Approximately 6800 feet of pipe of various sizes ranging from 1” to 15” has been installed from the Christopher Ditch mainline to users to the north of the mainline and across Neal Creek Road. 5 main irrigation lines were installed which will provide irrigation water to 25 users. 26 valves have been installed to service these users. The pipeline corridor was re-contoured and revegetated upon completion of the project. PCSRF dollars were used to purchase 6800 feet of pipe and fittings and for construction of the pipeline.

Project Benefit


Benefits include a water savings of 0.5 cfs, elimination of an overflow and reduction of irrigation overflow into Neal Creek. Reduction of the overflow will improve water quality in Neal Creek (reduced input of glacial sediment) and will benefit steelhead and coho. The EFID has submitted a conserved water application to the Oregon Water Resources Department (OWRD) for this project and a Final Order has been issued by the OWRD for the conversation of 0.5 cfs into an instream water right for the East Fork Hood River. Spring Chinook, steelhead, and coho will benefit from an increased stream flow during the low flow period. Benefits include improved fish passage through the irrigation bypass reach, water quality (temperature), and an increase in juvenile rearing habitat

Accomplishments

Metric Completed Originally
Proposed

Funding Details

SourceFunds
PCSRF$259,600
In-Kind Donated Labor$134,339
Report Total:$393,939

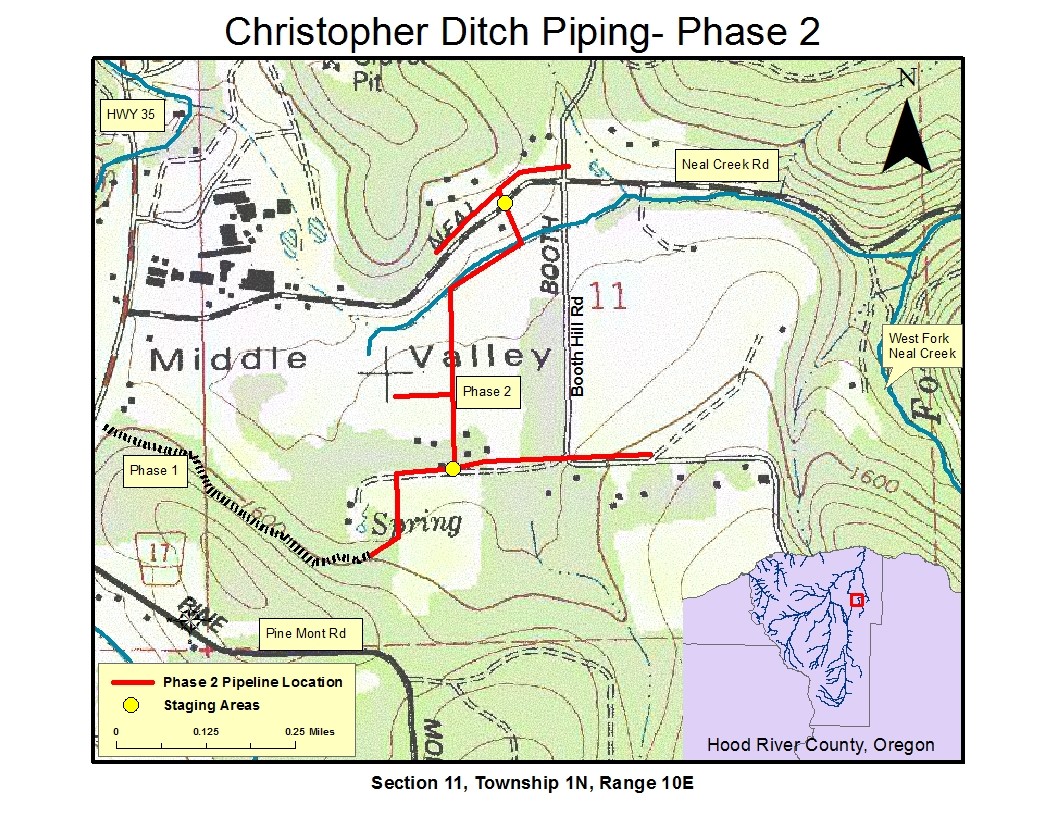

Project Map



Worksites

Christopher Ditch - Phase 2


  • Worksite Identifier: Christopher Ditch - Phase 2
  • Start Date: 09/15/2015
  • End Date: 06/30/2016
Area Description

No Area Description data was found for this worksite.

Location Information

  • Basin: Middle Columbia
  • Subbasin:
  • Watershed:
  • Subwatershed:
  • State: Oregon
  • Recovery Domain: Willamette R. - Lower Columbia
  • Latitude: 45.582649
  • Longitude: -121.541542

ESU

  • Lower Columbia River Coho Salmon ESU
  • Lower Columbia River Steelhead DPS
  • Lower Columbia River Chinook Salmon ESU

Map

Photos

14Warm4_1 14Warm4_2 14Warm4_3 14Warm4_4 14Warm4_5 14Warm4_6 Project Map

Metrics

Metrics
  • C.0 Salmonid Habitat Restoration and AcquisitionY (Y/N)
    •      . . C.0.a Habitat restoration and acquisition funding 393,939.00
    •      . . C.0.b Length of stream treated/protected 6.40
    •      . . C.0.c
      Project identified in a Plan or Watershed Assessment
      Wy-Kan-Ush-Mi Wa-Kish-Wit Spirit of the Salmon (1996), Hood River Watershed Assessment (1999), Hood River Subbasin Plan (2004), Hood River Basin Aquatic Restoration Strategy (2006), Hood River Watershed Action Plan (2008), and one more (see proposal)
    •      . . C.0.d.1 Project Monitoring (LOV)
    •      . . C.0.d.2 Monitoring Location (LOV)
    •      . . C.0.d.3
      Monitoring text (from Phase I)
      The East Fork Irrigation District (EFID) and the Confederated Tribes of Warm Springs (CTWS) will visually inspect the project during and after construction to ensure that the project is constructed and operating as designed. The Oregon Department of Water Resources will monitor EFID water use to ensure that the instream water right is adhered to. Water quality in Neal Creek will be monitored to determine the effects of the project. East Fork Hood River water temperatures will continue to be monitored.
    •      . . C.3 Instream Flow ProjectY (Y/N)
      •      . . . . C.3.a Instream Flow Funding 393,939.00
      •      . . . . C.3.b Length of stream 'protected' for adequate flow 6.40
      •      . . . . C.3.c Change in water flow.5 (cfs)
      •      . . . . C.3.e.1 Irrigation practice improvementY (Y/N)
        •      . . . . . . C.3.e.2 Acre feet of water conserved per year167 (Acre feet)
        •      . . . . . . C.3.e.3 cfs (cubic feet per second) of water conserved.5 (cfs)
        •      . . . . . . C.3.e.4 Initial start date of action or agreement04/15/2016 (mm/dd/yyyy)
        •      . . . . . . C.3.e.5 Final end date of action or agreement12/31/9999 (mm/dd/yyyy)
