Coquille Subbasin Plan Phase III

Salmonid Habitat Restoration and Acquisition

Fish Passage Improvement Instream Habitat Riparian Habitat Wetland
Project ID11.438 Coq 2012
Recovery DomainsOregon Coast
Start Date01/01/2013
End Date10/30/2018
Year2012
StatusCompleted
Last Edited01/25/2024

1 - 1

Description


The Coquille Subbasin Plan Phase III or the Cochran Ranch Project, was successful in many ways. Overwintering habitat access for Oregon Coast Coho was improved, water quality was improved through riparian planting and fencing, collaboration between many partners- landowner, Oregon Department of Fish and Wildlife, and Coquille Watershed Association- was successful. This project lasted longer than intended, 15 months longer, for a couple reasons. Permitting through NOAA (and the writing of the biological assessment/opinion) and Army Corps of Engineers took well over two years to obtain. The Coquille Watershed Association (who was the sub-contractor for the project) went through staffing shortages (staff passed away) and staffing changes. The Coquille Indian Tribes Natural Resources Department also went through staffing changes. All of these things combined to delaying the project and portions of Site 2 not being completed.

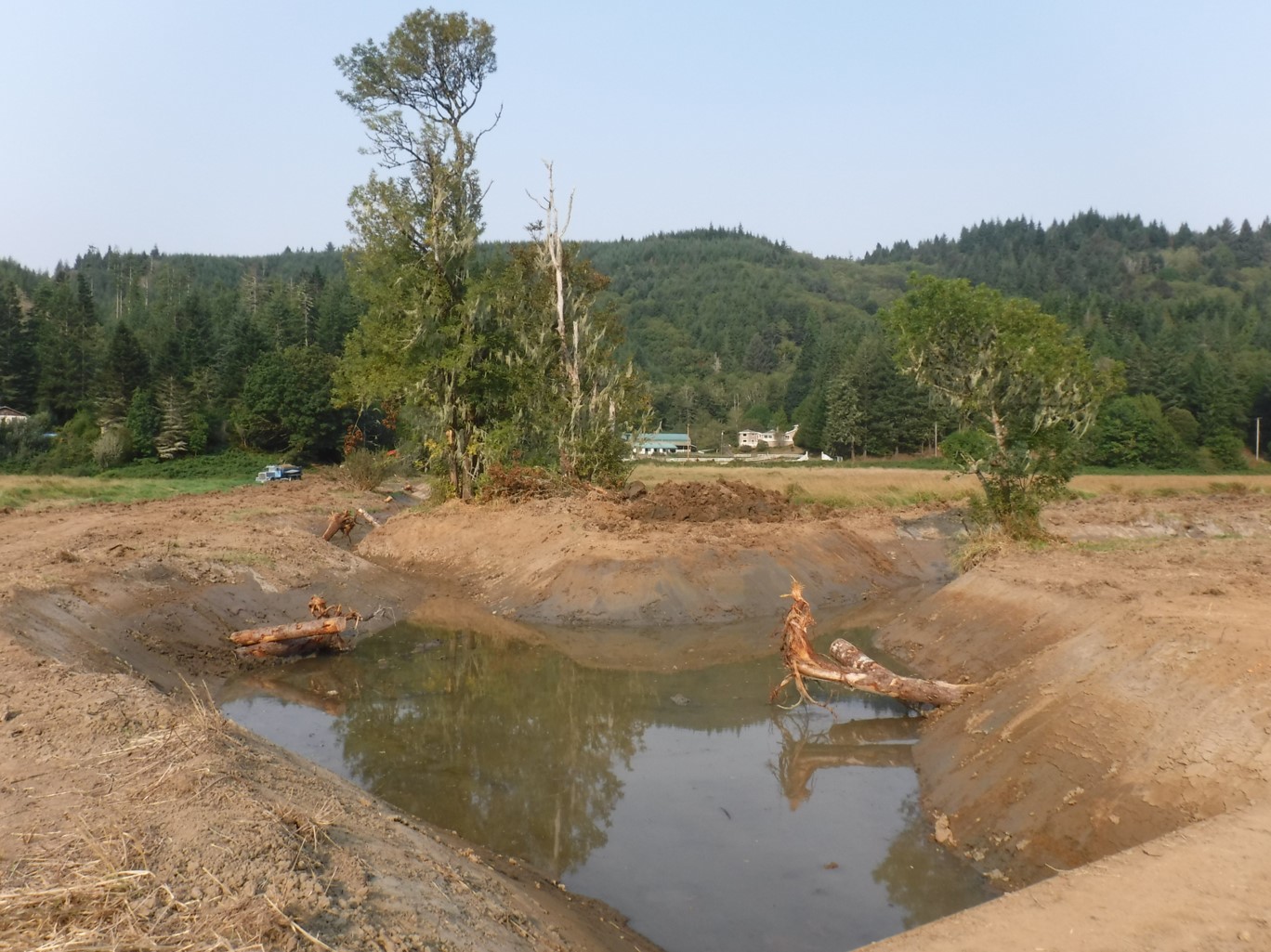

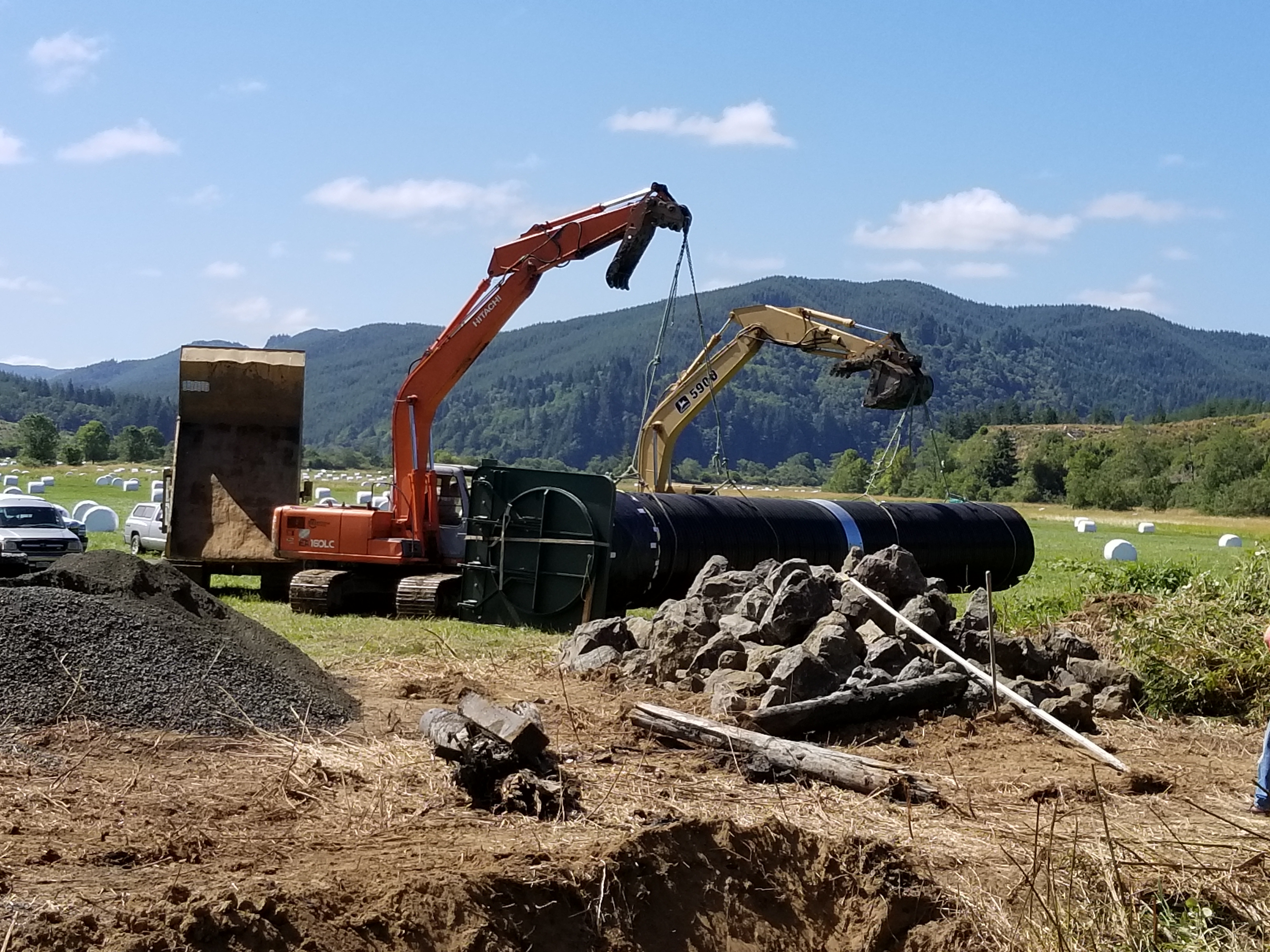

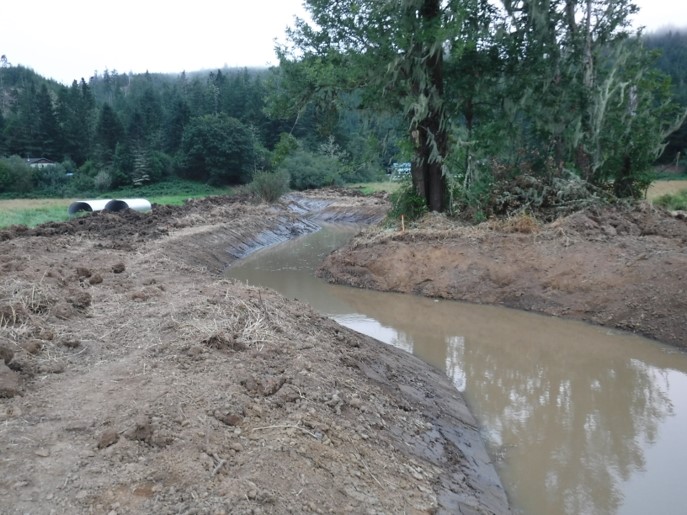

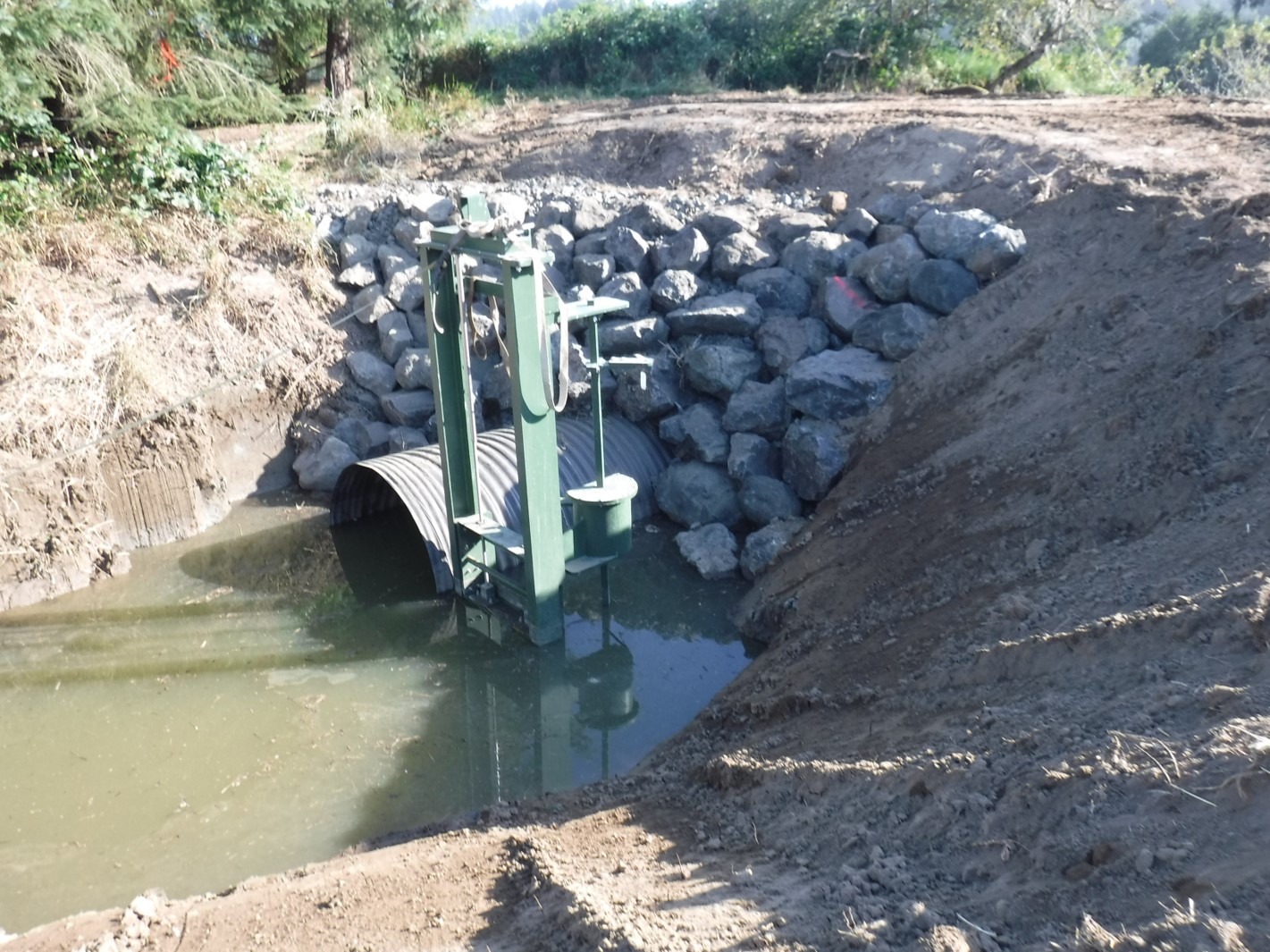

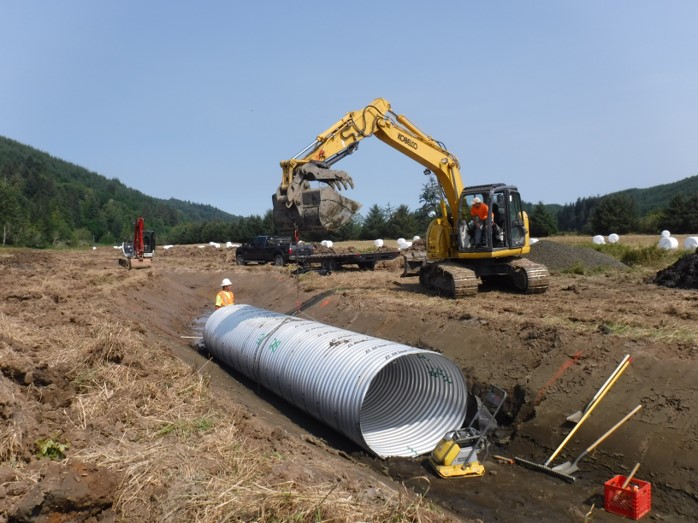

Site 1 improved fish passage by replacing a 36” top-hinged steel door tidegate and culvert, with a 72” side hinged tidegate with Muted Tidal Regulator (MTR) and culvert to improve water and fish passage. Following tidegate installation, contractor Tom Wheeler re-meandered historically straightened drainages and streams that had been silting in over the past decades. The re-meandered channels will restore and improve fish habitat by developing winter refuge/off-channel habitat. Large woody debris was also placed in the re-meandered channels. Mostly by penciling or burring the top of the log to allow the rootwad to be within the channel. The scope of work was finalized with the planting of native species along both sides of new stream channel (1.1 miles), four acres of wetland planted with native stock, as well as a livestock exclusion fencing and two improved livestock crossing areas.

Site 2 was modified from the original plans to accommodate wetland needs, permitting delays and unforeseen costs. This site has been limited to briar and debris clearing to allow the native plantings to take hold, which coincided with the Elk habitat restoration project, and planting of native species along both sides of new stream channel (1.4 miles), six acres of wetland planted with native stock. Additional work would have included further channel meandering, large woody debris placement, an additional wetland complex, with fencing and more planting. Costs associated with this site remained close to the same due to the delay in getting permitting; sub-contractor prices increased with the delay in time.

Project Benefit


The project will create coho over-wintering habitat and improved migration and wintering habitat for numerous species of waterfowl and shorebirds. Historically there was an estimated 25,000 acres of vegetated wetlands in the bottom-lands of the lower Coquille River (Historical Reconstruction of the Coquille River and Surrounding Landscapes, 1997, p. 3.2-18). As of 2007, only 3-4% of tidal and freshwater marshes remain within the Coquille Watershed (Coquille River Subbasin Plan, 2007, p. 99). Historically the lower Coquille River was surrounded by wooded bottom-land hardwoods which trapped and deposited sediment, retained large wood debris, enhanced stream complexity, increased leaf litter and insect inputs, increased stability of the alluvial channel and decreased stream velocity to provide slow water refugia. Early settlers converted the vast majority of the timbered Coquille bottom-lands to emergent grasses or upland prairies to make the valley habitable and allow agricultural development (Coquille River Subbasin Plan, 2007, p. 23). Past land practices cleared all vegetation, drained wetlands, dredged the river and created artificial dikes by depositing the soils in the floodplain.
Historically timbered swamps or marshes provided critical over-wintering habitat for juvenile coho. Lack of slow water refugia is a severely limiting factor for recovery of the ESA listed Coquille coho population. The lower Coquille River maintains floodplain connectivity, although, off-channel habitat essential in providing juvenile salmon refugia, crucial nutrients, and rearing habitat are greatly reduced.
The Pacific Coast Joint Venture (PCJV) identifies the Coquille River Valley as the most important waterfowl area between San Francisco Bay and the Columbia River. The area is critically important to numerous species of waterfowl and shorebirds during migration and wintering periods. According to the PCJV, the area is rated as high priority in the U.S. Fish and Wildlife Services ranking of waterfowl habitat protection and restoration needs, and is the agencys number 1 priority for protection and restoration in Oregon.

Accomplishments

Metric Completed Originally
Proposed
Instream Habitat
  Stream Miles Treated .55 2.00
Wetland Habitat
  Acres Created .0 5.5
  Acres Treated 4.0 9.5
Estuarine Habitat
  Acres Created
  Acres Treated 4.0 4.0
Riparian Habitat
  Stream Miles Treated 2.50 4.00
  Acres Treated 10.0 10.0
Fish Passage
  Barriers Removed 1 1
  Miles Opened 1.30 1.30

Funding Details

SourceFunds
PCSRF$325,540
In-Kind Donated Labor$15,000
In-Kind Other$7,200
Report Total:$347,740


Project Map



Worksites

Site 1


  • Worksite Identifier: Site 1
  • Start Date: 07/01/2012
  • End Date: 07/31/2017
Area Description

No Area Description data was found for this worksite.

Location Information

  • Basin: Southern Oregon Coastal (171003)
  • Subbasin:
  • Watershed:
  • Subwatershed:
  • State: Oregon
  • Recovery Domain: Oregon Coast
  • Latitude: 43.134538
  • Longitude: -124.290542

ESU

  • Oregon Coast Coho Salmon ESU

Map

Photos

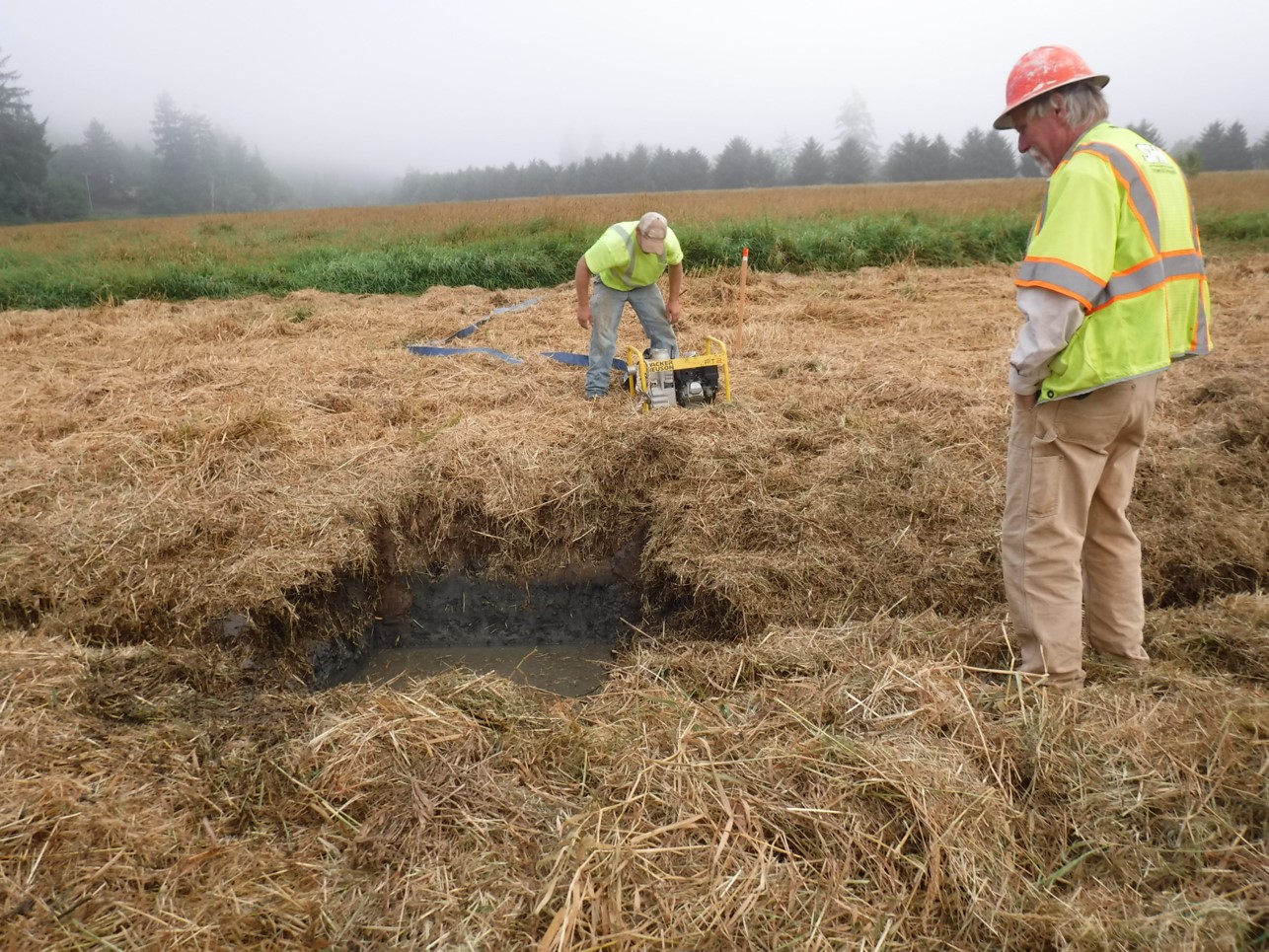

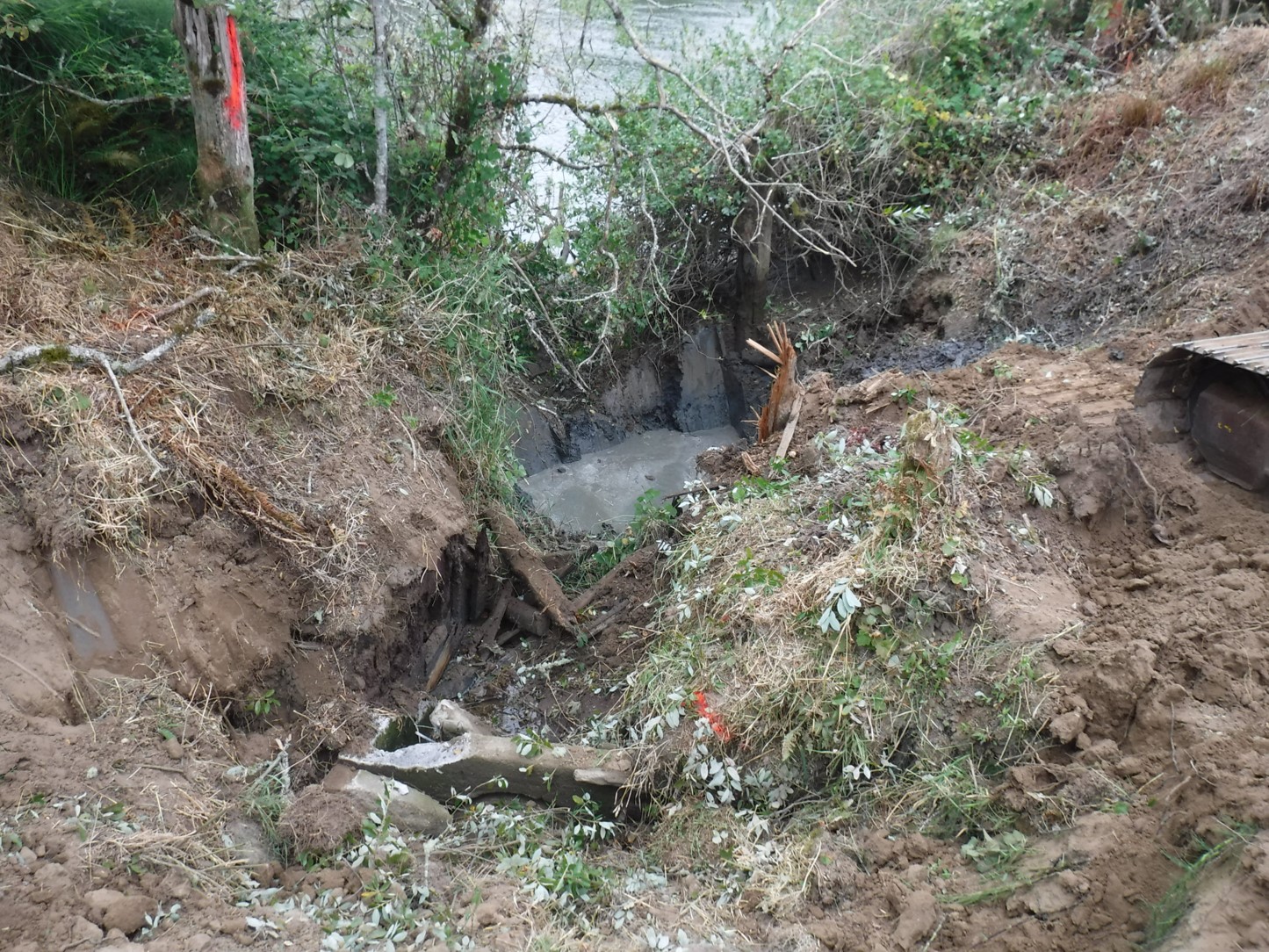

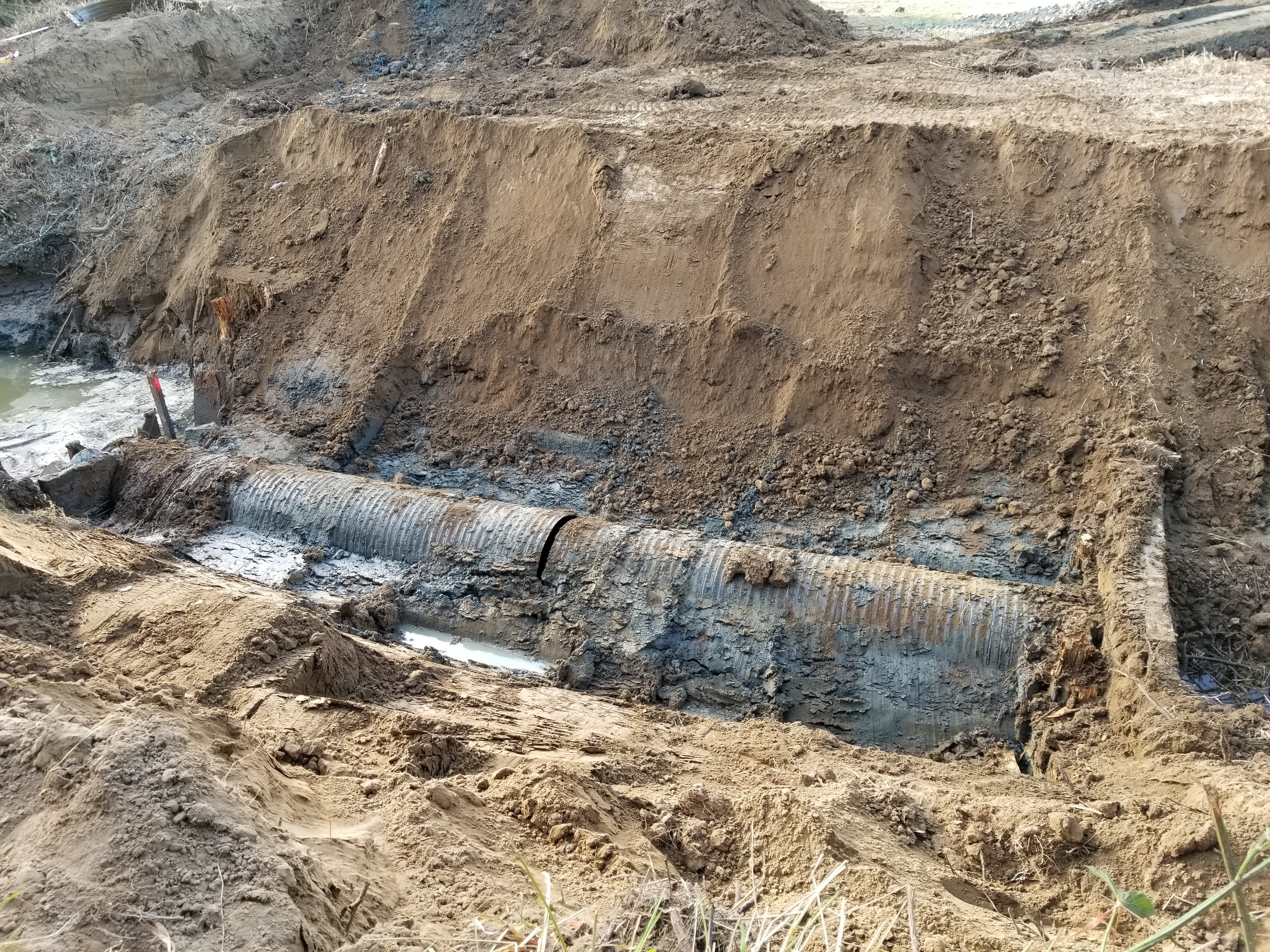

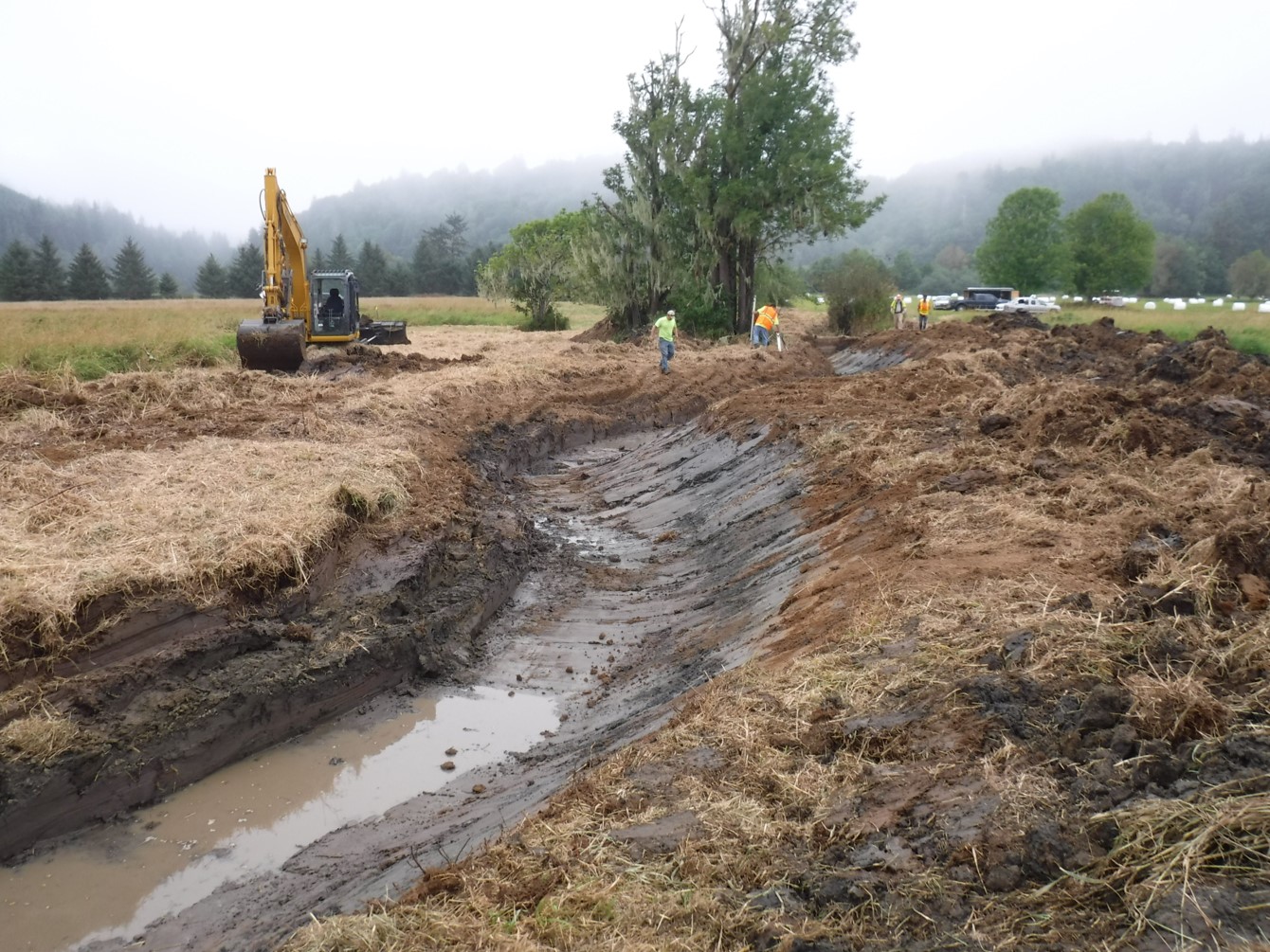

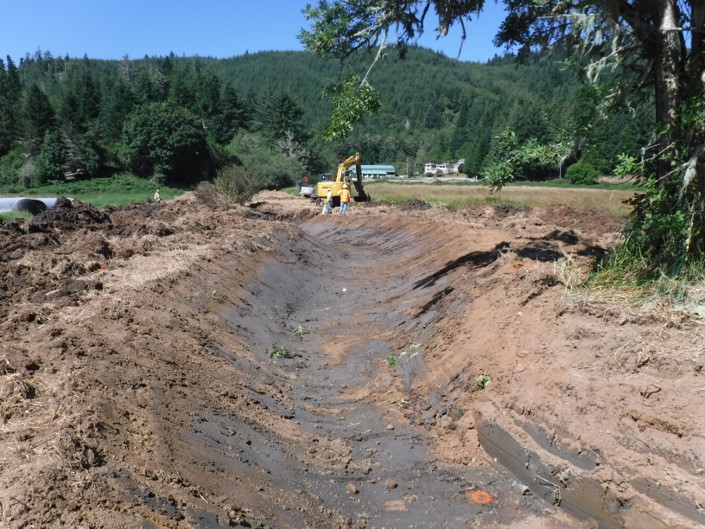

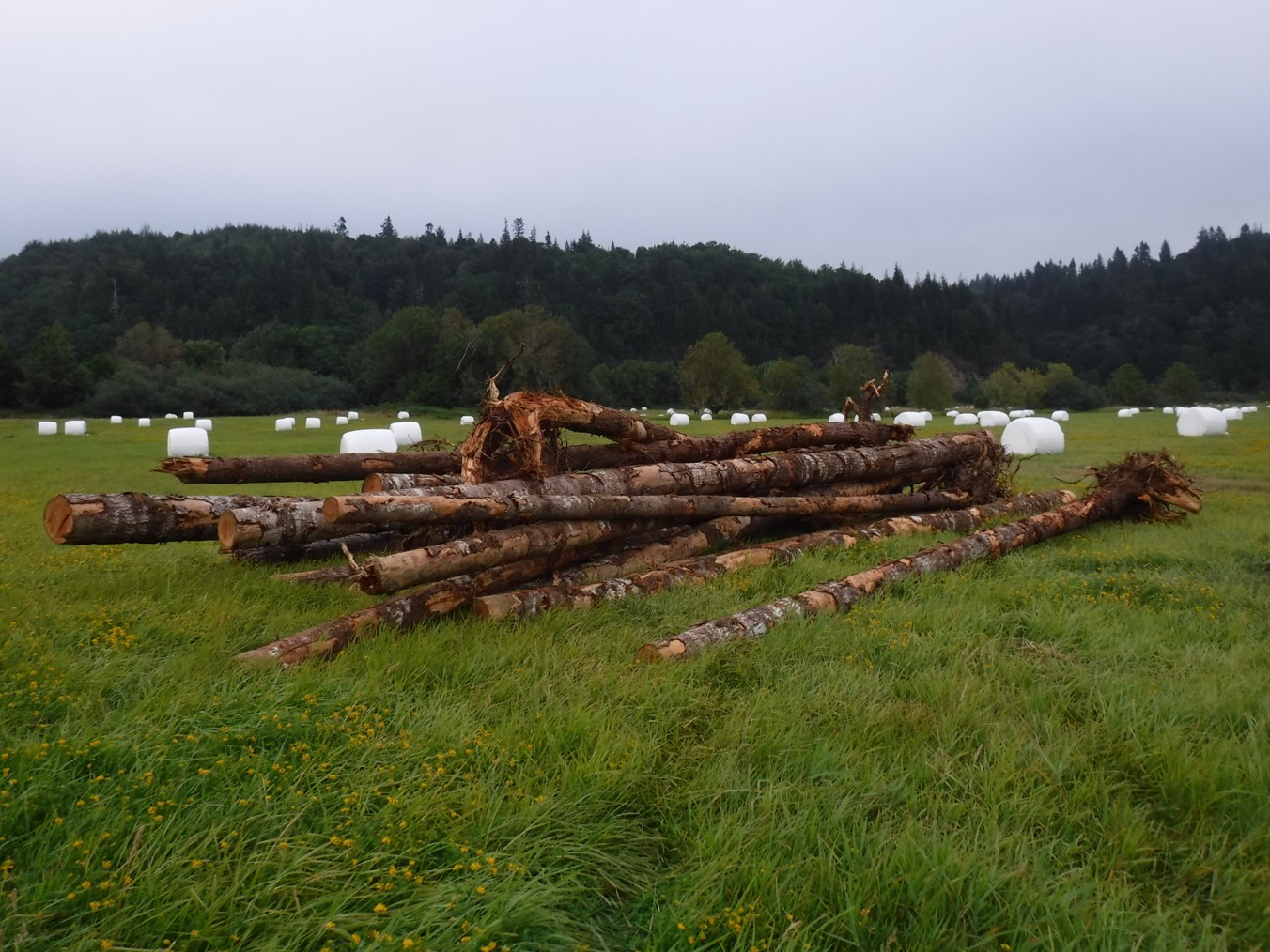

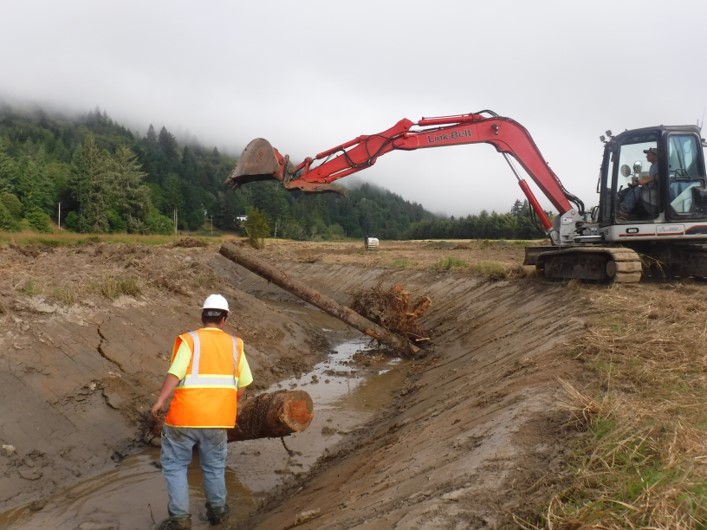

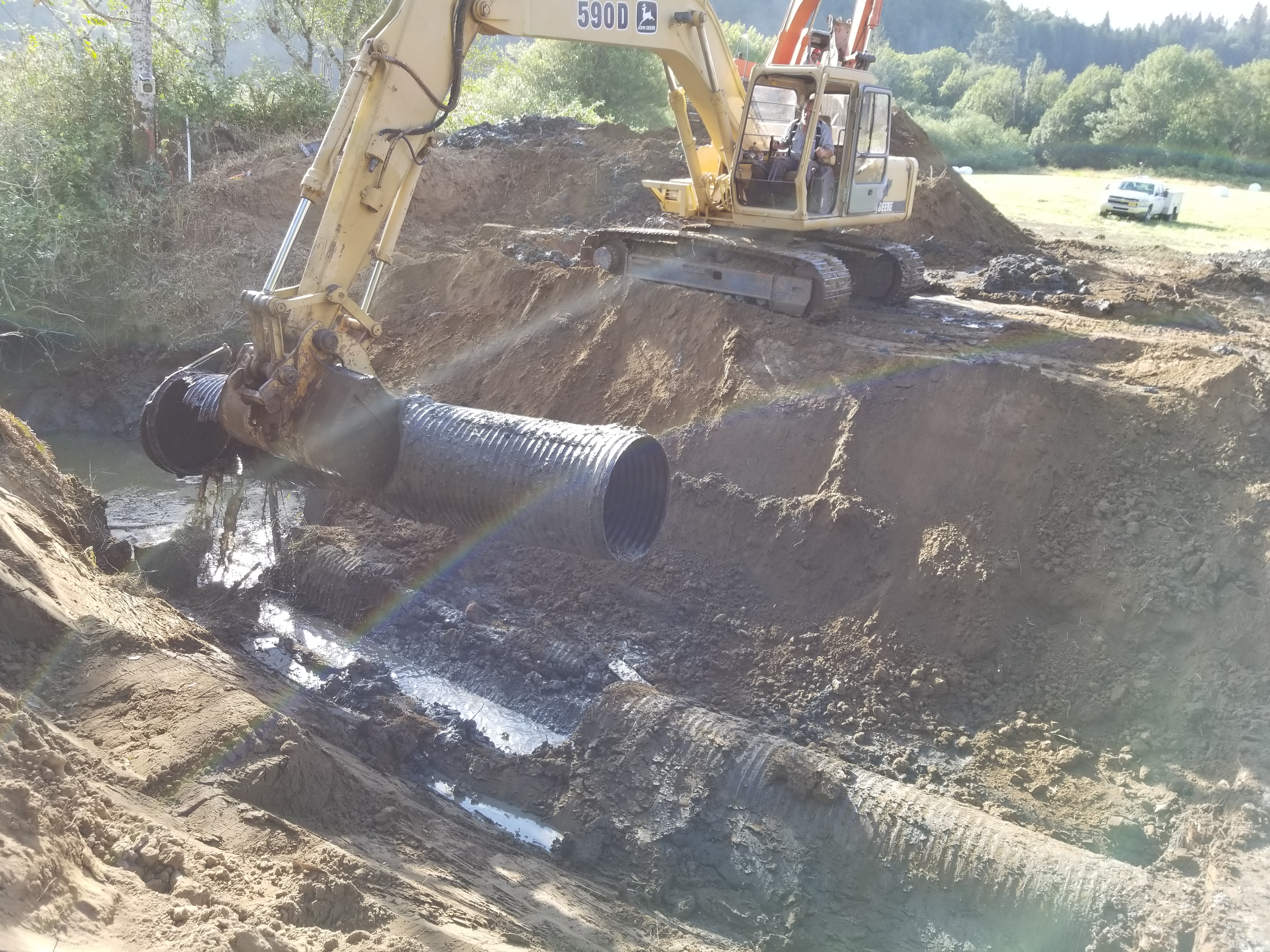

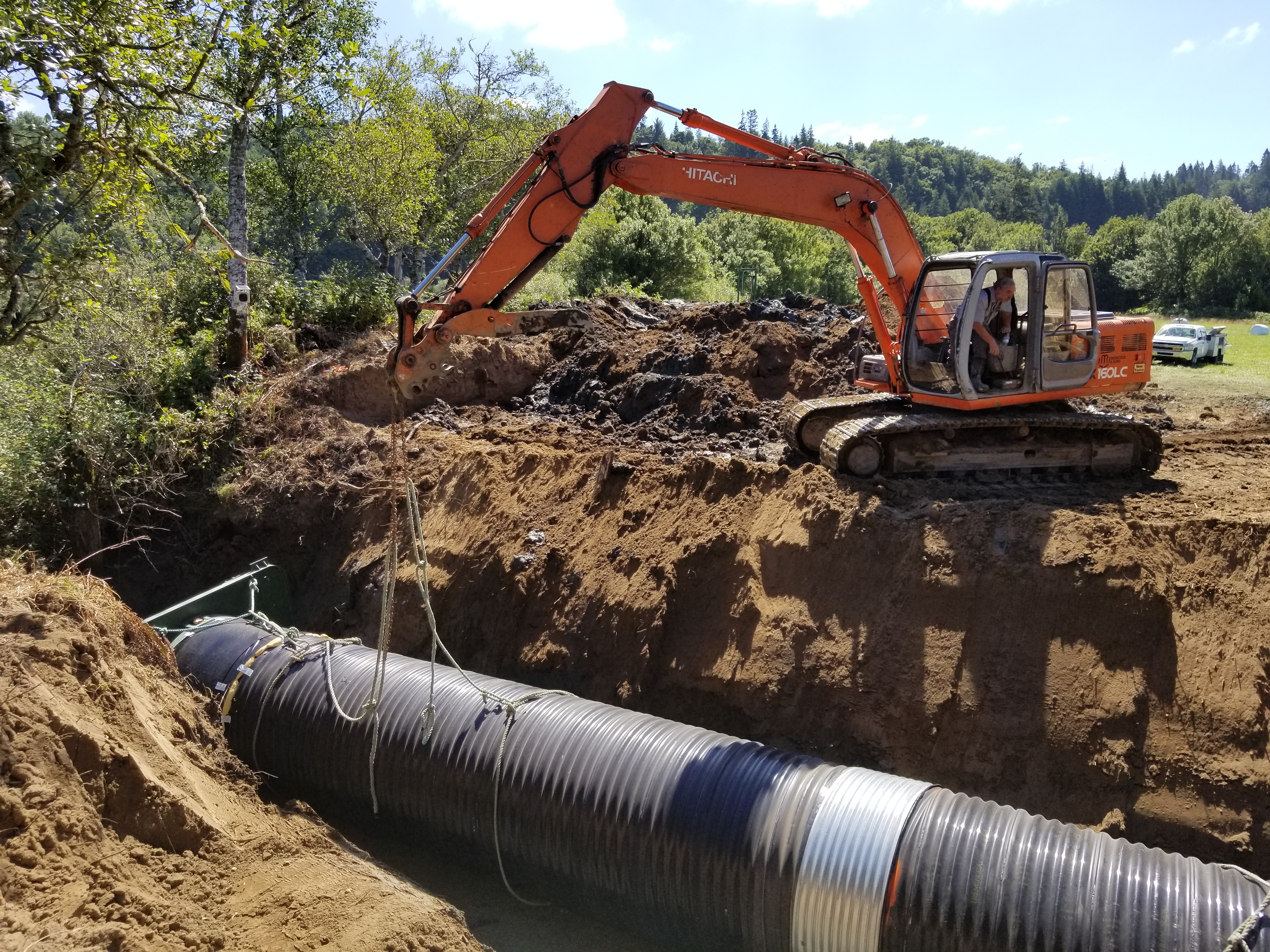

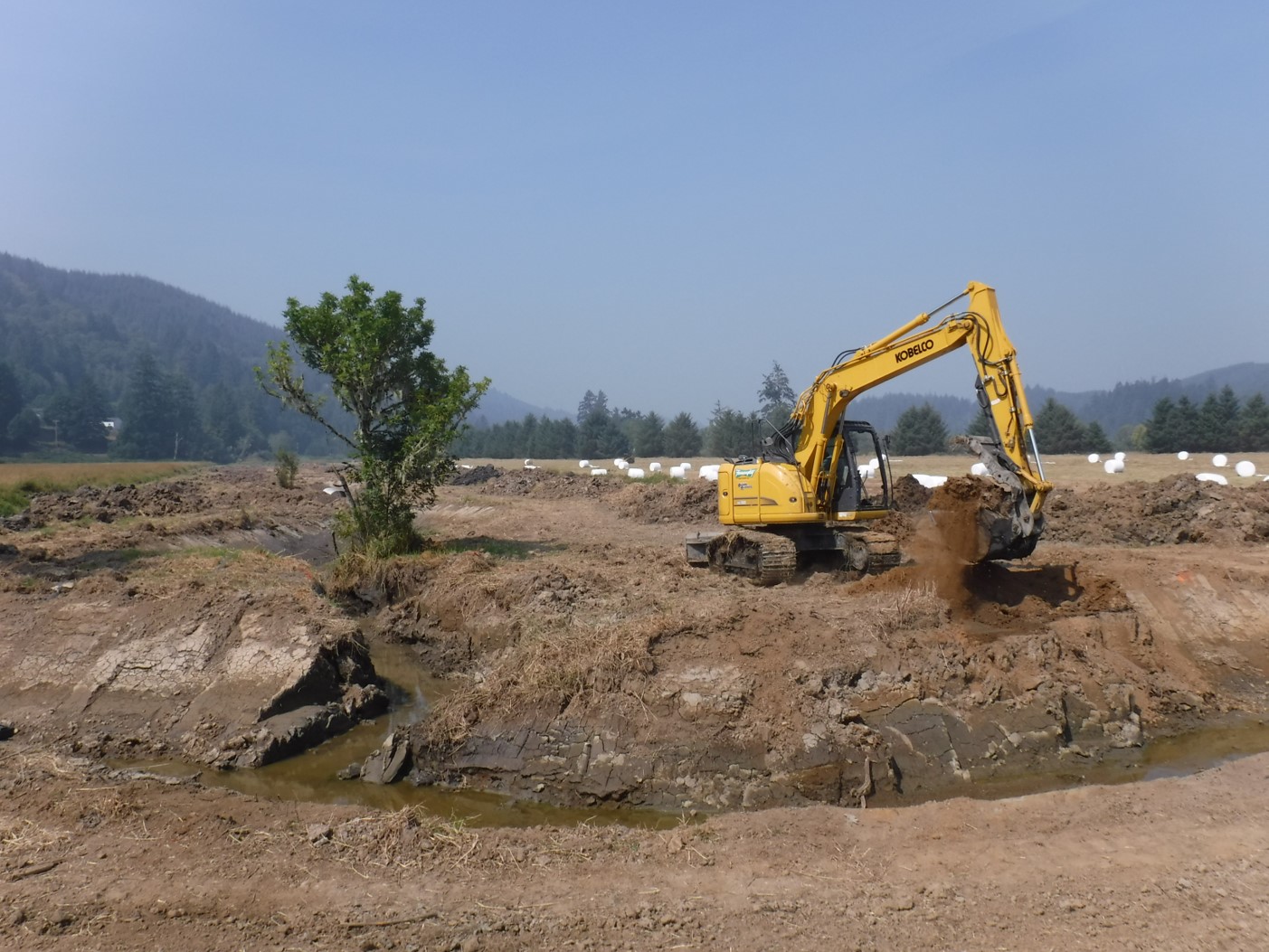

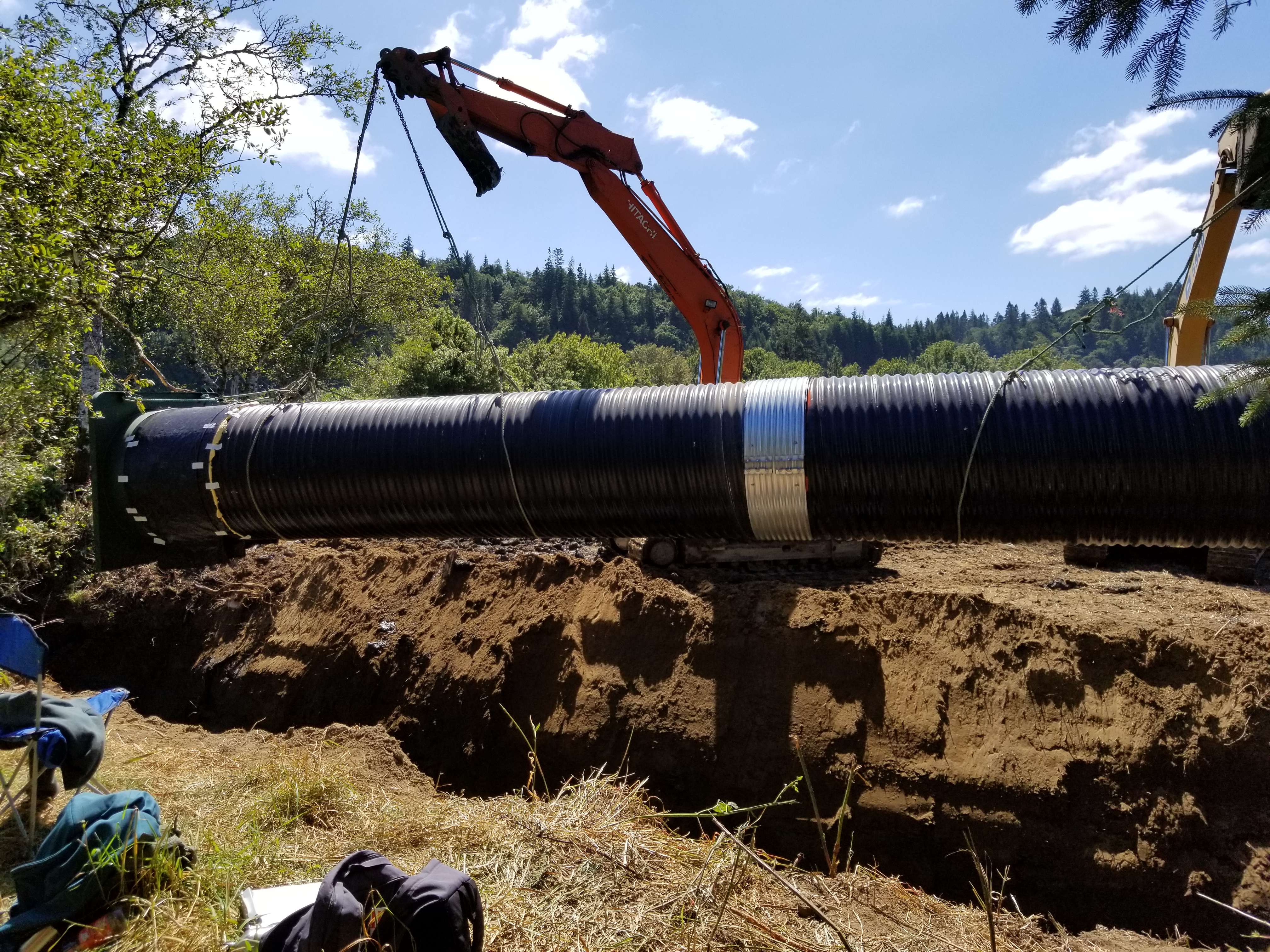

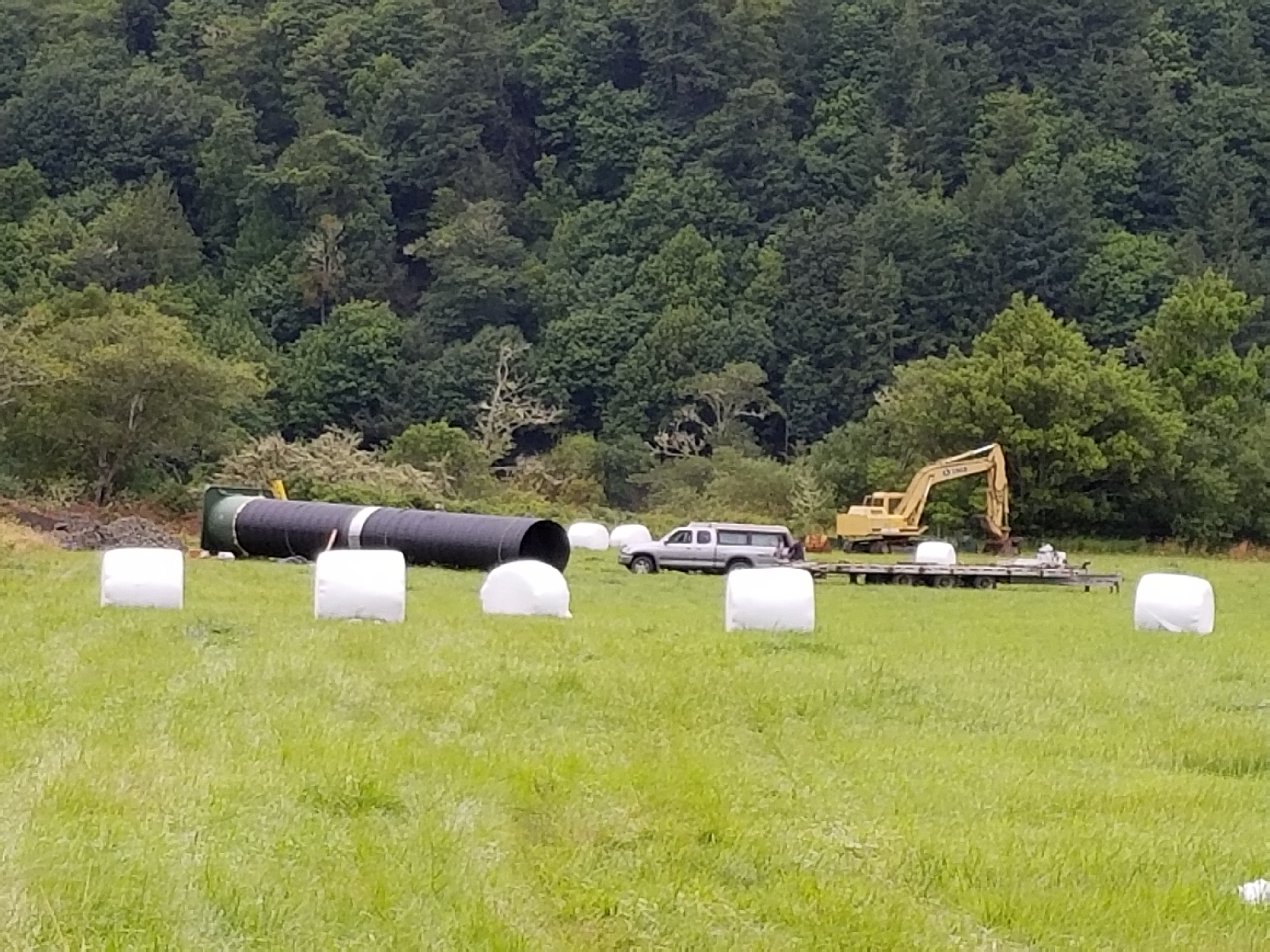

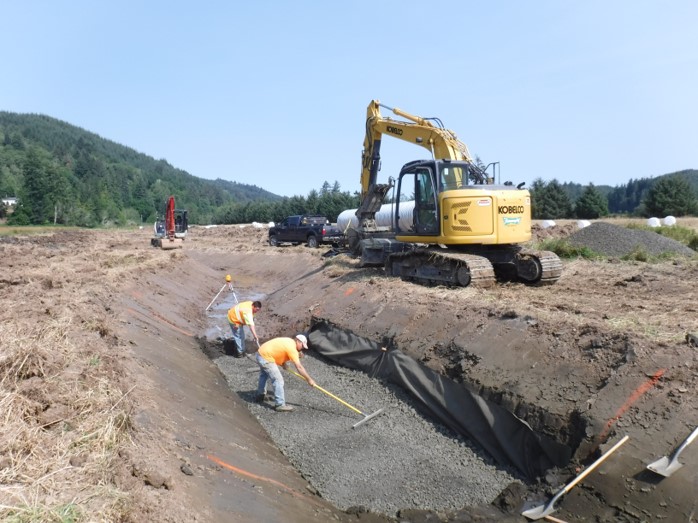

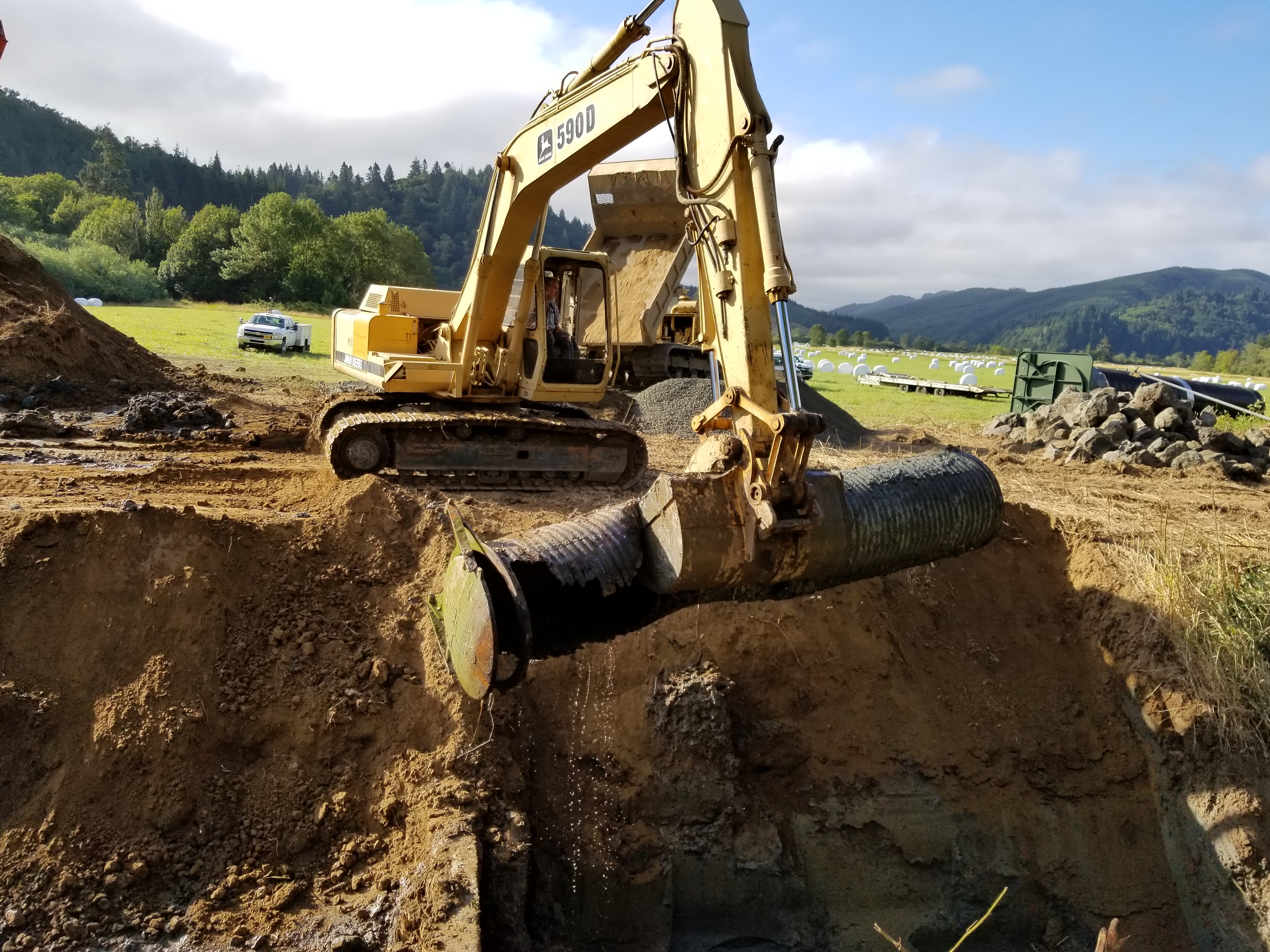

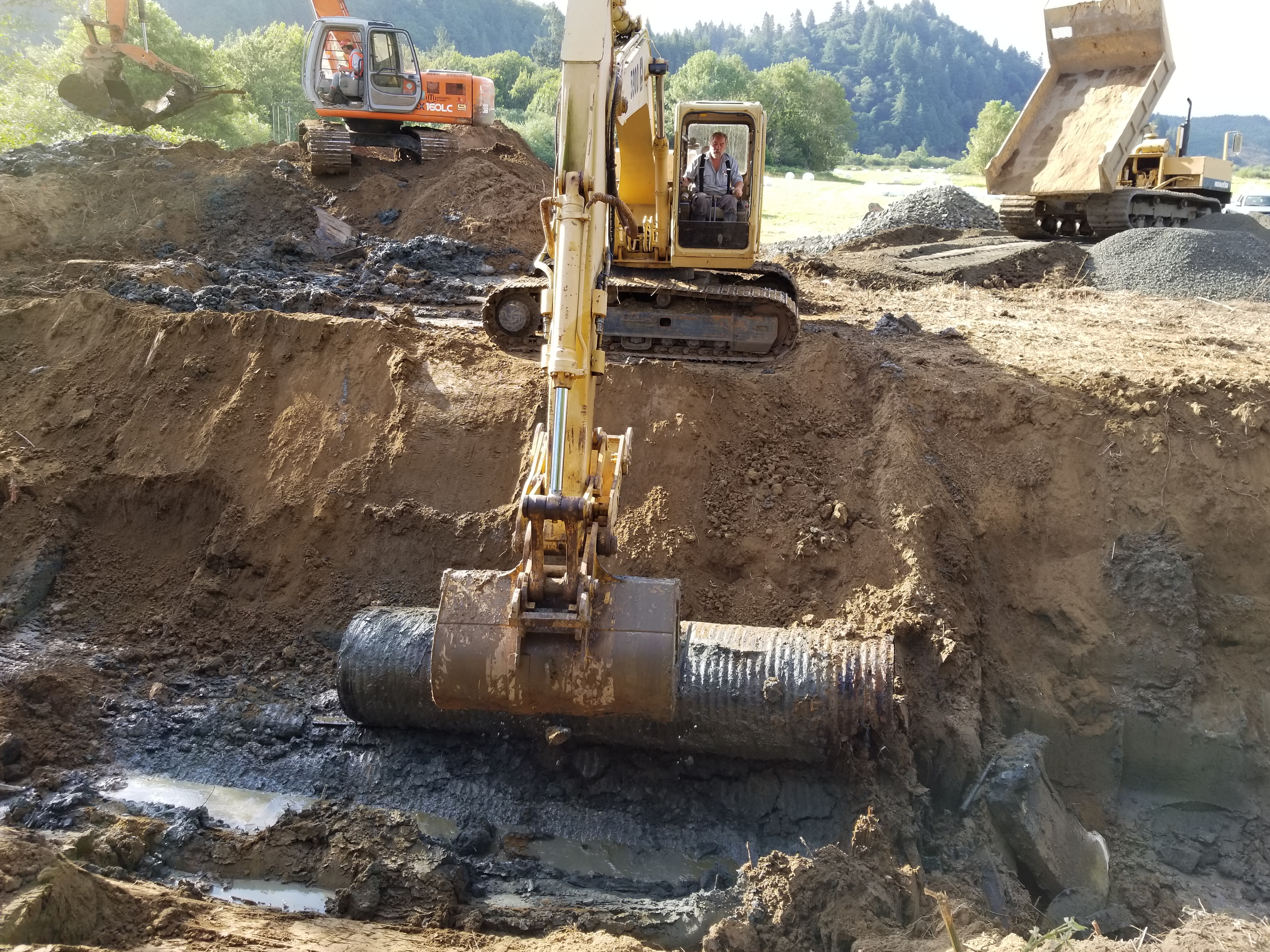

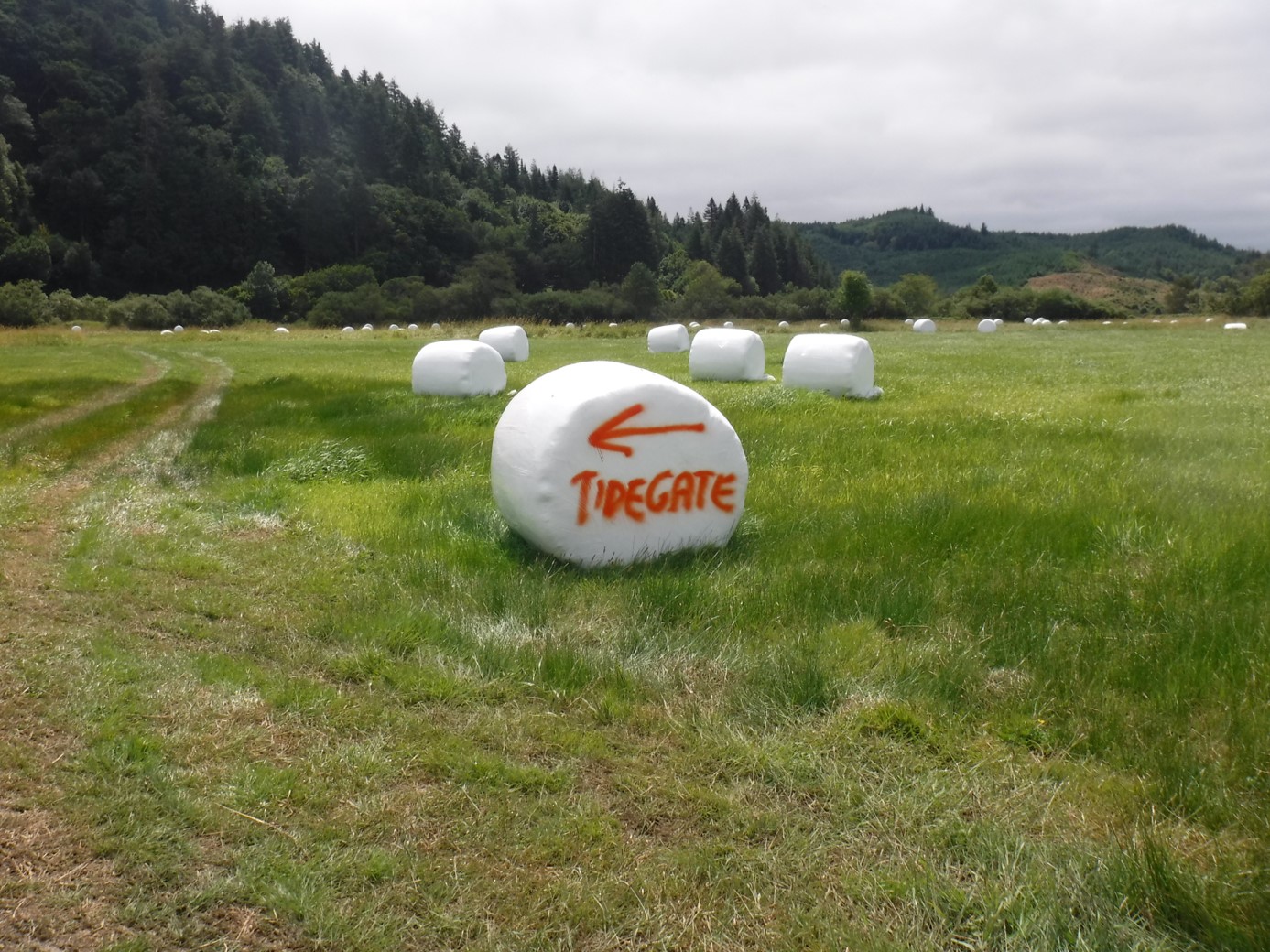

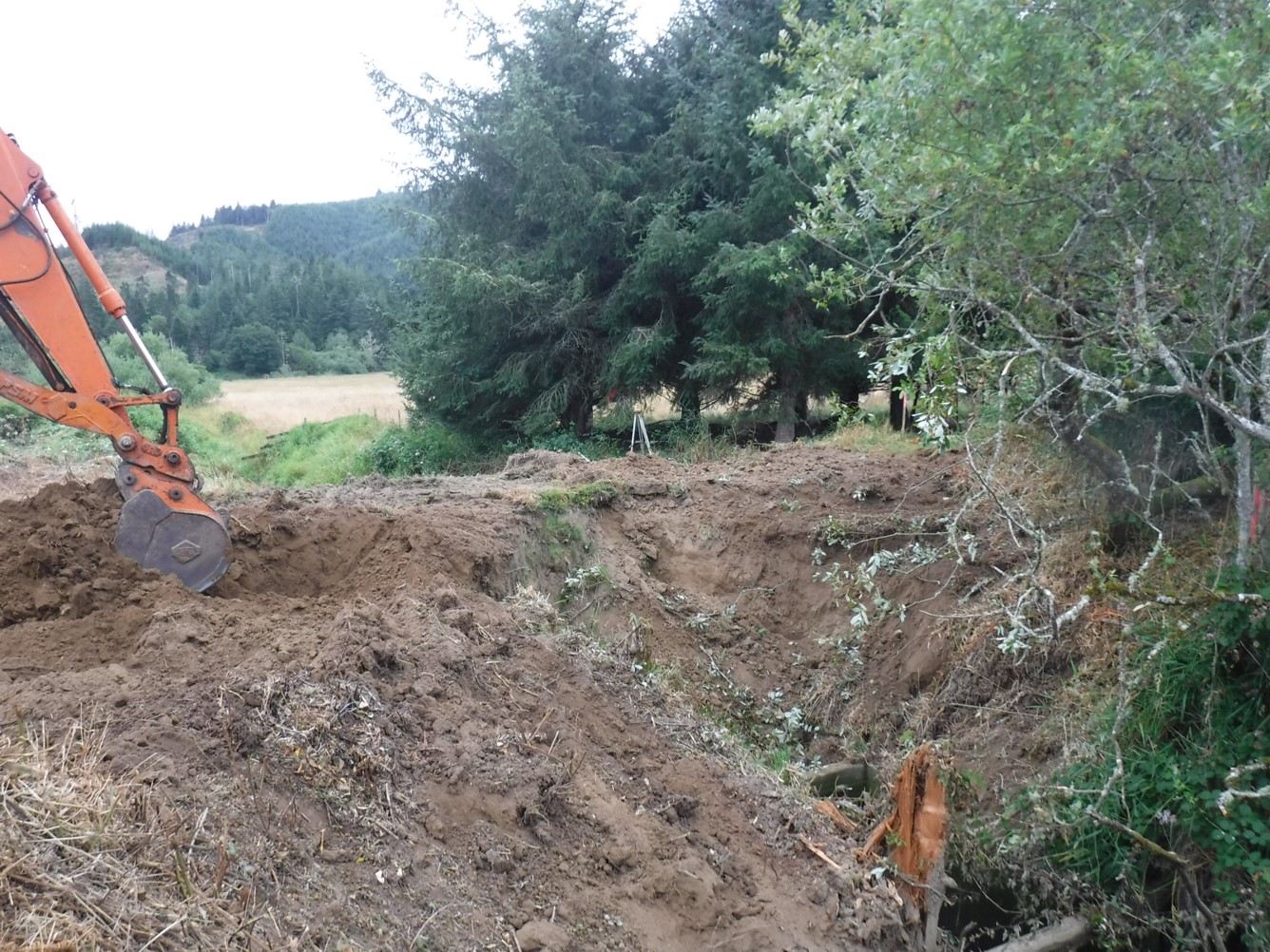

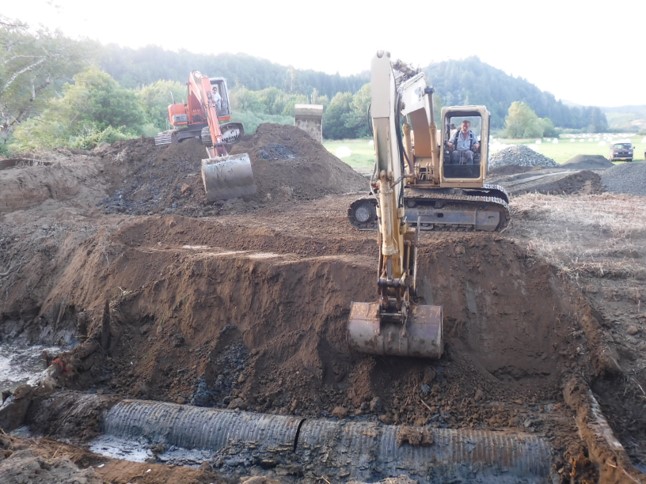

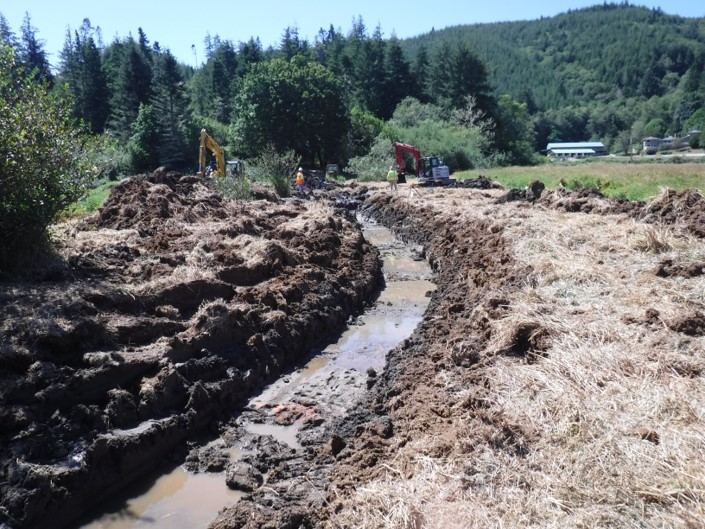

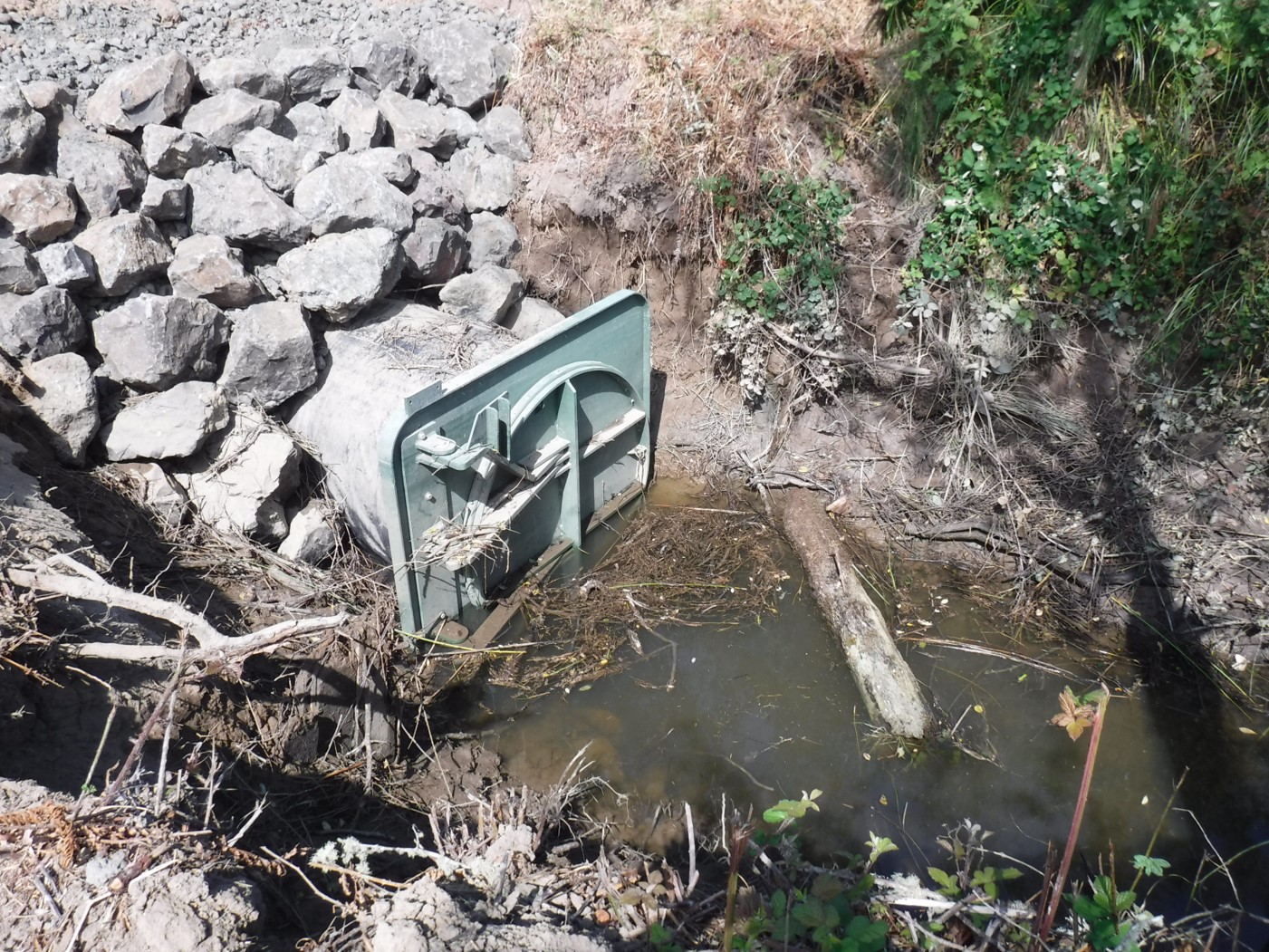

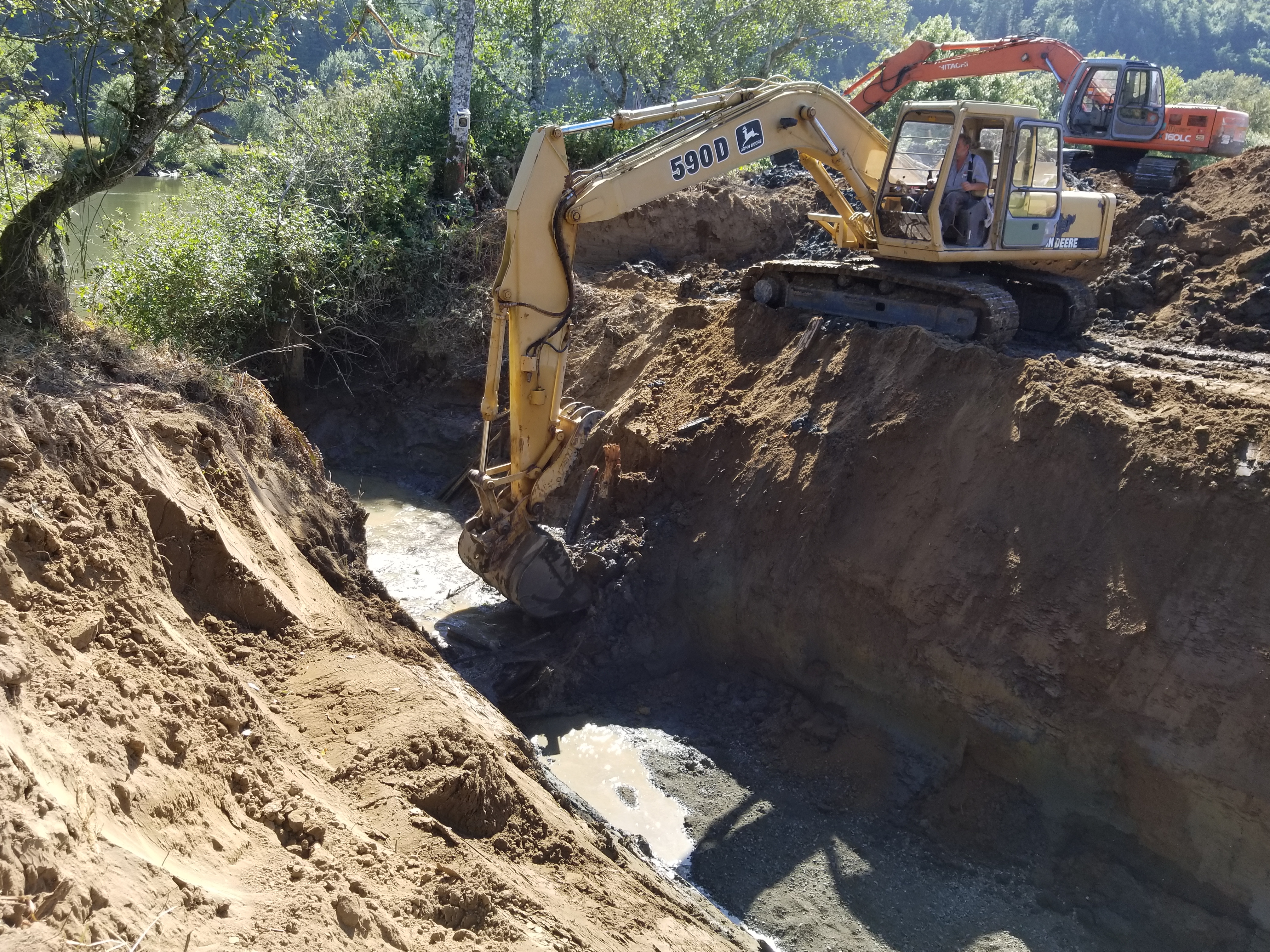

To The Tidegate Worksite Digging Begins Old tide gate Old tide gate and culvert Old tide gate and culvert Coquille Watershed Association and ODFW staff Removal of old tide gate and culvert Removal of old tide gate and culvert Removal of old tide gate and culvert Removal of old tide gate and culvert Removal of old tide gate and culvert Removal of old tide gate and culvert New tide gate and culvert New tide gate and culvert New tide gate and culvert New tide gate and culvert Side hinged tide gate Muted Tidal Regulator Tidal channel before OC coho SHPO/THPO monitoring Tidal channel excavation Tidal channel excavation Channel excavation Channel excavation Channel excavation East channel excavation Wood East channel crossing East channel crossing Channel intersect pond Channel intersect pond Large wood

Metrics

Metrics
  • C.0 Salmonid Habitat Restoration and AcquisitionY (Y/N)
    •      . . C.0.a Habitat restoration and acquisition funding 326,690.00
    •      . . C.0.b Length of stream treated/protected .55
    •      . . C.0.c
      Project identified in a Plan or Watershed Assessment
      Oregon Coast Coho Conservation Plan Pacific Coast Joint Venture Coquille Indian Tribe Coquille Sub-basin Plan 2007
    •      . . C.0.d.1 Project Monitoring (LOV)
    •      . . C.0.d.2 Monitoring Location (LOV)
    •      . . C.2 Fish Passage ImprovementY (Y/N)
      •      . . . . C.2.a Fish Passage Funding 94,821.00
      •      . . . . C.2.b.1 Length of stream made accessible 1.30
      •      . . . . C.2.b.3 Type of blockage/barrier (LOV)
      •      . . . . C.2.b.4 Number of blockages/impediments/barriers impeding passage 1
      •      . . . . C.2.c.1 Fish passage blockages removed or altered (other than road crossings reported in C.2.f to C.2.i)Y (Y/N)
        •      . . . . . . C.2.c.2 Number of blockages/impediments/barriers removed/altered 1
      •      . . C.4 Instream Habitat ProjectY (Y/N)
        •      . . . . C.4.a Instream Habitat Funding 55,352.00
        •      . . . . C.4.b Total length of instream habitat treated .55
        •      . . . . C.4.c.1 Channel reconfiguration and connectivityY (Y/N)
          •      . . . . . . C.4.c.2 Type of change to channel configuration and connectivity (LOV)
          •      . . . . . . C.4.c.3 Miles of stream treated for channel reconfiguration and connectivity .55
          •      . . . . . . C.4.c.4 Miles of off-channel stream created through channel reconfiguration and connectivity .00
          •      . . . . . . C.4.c.5 Acres of off-channel or floodplain connected through channel reconfiguration and connectivity 28.0
          •      . . . . . . C.4.c.6 Instream pools created/added through channel reconfiguration and connectivity 16
        •      . . . . C.4.d.1 Channel structure placementY (Y/N)
          •      . . . . . . C.4.d.2 Material used for channel structure (LOV)
          •      . . . . . . C.4.d.3 Miles of stream treated through channel structure placement .55
          •      . . . . . . C.4.d.5 Pools expected to be created through channel structure placement 18
          •      . . . . . . C.4.d.7 Number of structures placed in channel 25
        •      . . C.5 Riparian Habitat ProjectY (Y/N)
          •      . . . . C.5.a Riparian Habitat Funding 68,245.00
          •      . . . . C.5.b.1 Total riparian miles streambank treated 1.10
          •      . . . . C.5.b.2 Total Riparian Acres Treated 4.0
          •      . . . . C.5.c.1 Riparian plantingY (Y/N)
            •      . . . . . . C.5.c.2
              Species of plants planted in riparian
              Alnus rubra, Amelanchiar alnifolia, Oemleria cerasiformus, Physocarpus capitatus, Rhamnus purshiana, Picea sitchensis
            •      . . . . . . C.5.c.3 Acres planted in riparian 4.0
            •      . . . . . . C.5.c.4 Miles of streambank treated with riparian planting 1.10
          •      . . . . C.5.d.1 FencingY (Y/N)
            •      . . . . . . C.5.d.2 Miles of fence along stream 1.10
            •      . . . . . . C.5.d.3 Acres of riparian area protected by fencing 4.0
          •      . . . . C.5.f.1 Water gap developmentY (Y/N)
            •      . . . . . . C.5.f.2 Number of water gap installations 2
            •      . . . . . . C.5.f.3 Miles of streambank protected by water gap development 1.10
          •      . . C.8 Wetland ProjectY (Y/N)
            •      . . . . C.8.a Wetland funding 9,800.00
            •      . . . . C.8.b Total acres of wetland area treated 4.0
            •      . . . . C.8.c.1 Wetland plantingY (Y/N)
              •      . . . . . . C.8.c.2
                Species of wetland plants planted
                Salix, Cornus stoloifera, Populas balsamifera, Picea sitchensis, Alnus rubra, Spirea douglasii, Fraxinus latifolia, Malus fusca
              •      . . . . . . C.8.c.3 Acres of wetland planted 4.0
            •      . . . . C.8.e.1 Wetland improvement/restorationY (Y/N)
              •      . . . . . . C.8.e.2 Acres of wetland treated 4.0
            •      . . C.9 Estuarine/Nearshore ProjectY (Y/N)
              •      . . . . C.9.a Estuarine/nearshore funding 98,472.00
              •      . . . . C.9.b Total amount of estuarine/nearshore area treated 4.0
              •      . . . . C.9.e.1 Tidegate alteration/removalY (Y/N)
                •      . . . . . . C.9.e.2 Tidegates altered/removed to allow fish passage 1
                •      . . . . . . C.9.e.3 Acres opened to fish passage 28.0

Site 2


  • Worksite Identifier: Site 2
  • Start Date: 07/01/2012
  • End Date: 07/31/2017
Area Description

No Area Description data was found for this worksite.

Location Information

  • Basin: Southern Oregon Coastal (171003)
  • Subbasin:
  • Watershed:
  • Subwatershed:
  • State: Oregon
  • Recovery Domain: Oregon Coast
  • Latitude: 43.124884285623494
  • Longitude: -124.29503202438015

ESU

  • Oregon Coast Coho Salmon ESU

Map

Photos

Metrics

Metrics
  • C.0 Salmonid Habitat Restoration and AcquisitionY (Y/N)
    •      . . C.0.a Habitat restoration and acquisition funding 21,050.00
    •      . . C.0.b Length of stream treated/protected .00
    •      . . C.0.c
      Project identified in a Plan or Watershed Assessment
      Coquille Indian Tribe Coquille Sub-basin Plan 2007
    •      . . C.0.d.1 Project Monitoring (LOV)
    •      . . C.0.d.2 Monitoring Location (LOV)
    •      . . C.4 Instream Habitat ProjectY (Y/N)
      •      . . . . C.4.a Instream Habitat Funding .00
      •      . . . . C.4.b Total length of instream habitat treated .00
      •      . . . . C.4.c.1 Channel reconfiguration and connectivityY (Y/N)
        •      . . . . . . C.4.c.2 Type of change to channel configuration and connectivity (LOV)
        •      . . . . . . C.4.c.3 Miles of stream treated for channel reconfiguration and connectivity .00
        •      . . . . . . C.4.c.4 Miles of off-channel stream created through channel reconfiguration and connectivity .00
        •      . . . . . . C.4.c.5 Acres of off-channel or floodplain connected through channel reconfiguration and connectivity .0
        •      . . . . . . C.4.c.6 Instream pools created/added through channel reconfiguration and connectivity 0
      •      . . . . C.4.d.1 Channel structure placementY (Y/N)
        •      . . . . . . C.4.d.2 Material used for channel structure (LOV)
        •      . . . . . . C.4.d.3 Miles of stream treated through channel structure placement .00
        •      . . . . . . C.4.d.5 Pools expected to be created through channel structure placement 0
        •      . . . . . . C.4.d.7 Number of structures placed in channel 0
      •      . . C.5 Riparian Habitat ProjectY (Y/N)
        •      . . . . C.5.a Riparian Habitat Funding 21,050.00
        •      . . . . C.5.b.1 Total riparian miles streambank treated 1.40
        •      . . . . C.5.b.2 Total Riparian Acres Treated 6.0
        •      . . . . C.5.c.1 Riparian plantingY (Y/N)
          •      . . . . . . C.5.c.2
            Species of plants planted in riparian
            Salix, Cornus stoloifera, Populas balsamifera, Picea sitchensis, Alnus rubra, Spirea douglasii, Fraxinus latifolia, Malus fusca
          •      . . . . . . C.5.c.3 Acres planted in riparian 6.0
          •      . . . . . . C.5.c.4 Miles of streambank treated with riparian planting 1.40
        •      . . . . C.5.d.1 FencingY (Y/N)
          •      . . . . . . C.5.d.2 Miles of fence along stream .00
        •      . . . . C.5.j.1 Debris/structures removalY (Y/N)
          •      . . . . . . C.5.j.2 Acres of riparian treated for debris/structures removal 6.0
        •      . . C.8 Wetland ProjectY (Y/N)
          •      . . . . C.8.a Wetland funding .00
          •      . . . . C.8.b Total acres of wetland area treated .0
          •      . . . . C.8.c.1 Wetland plantingY (Y/N)
            •      . . . . . . C.8.c.2
              Species of wetland plants planted
              None
            •      . . . . . . C.8.c.3 Acres of wetland planted .0
          •      . . . . C.8.f.1 Artificial wetland createdY (Y/N)
            •      . . . . . . C.8.f.2 Artificial wetland acres created .0
